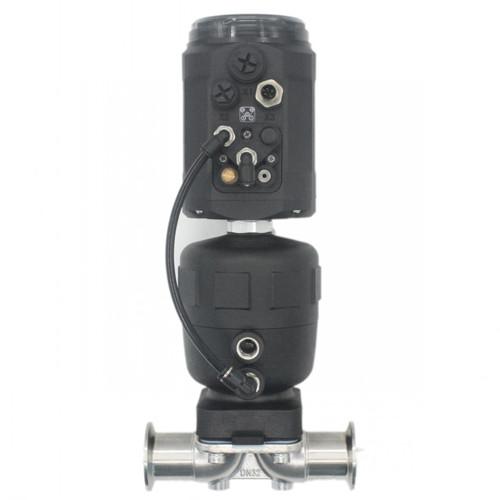

CE Certificate SS316 CF8M Pneumatic Diaphragm Valve

Brand Name : POWERFLOW

Model Number : 2800+1500

Certification : ISO9001. CE.

Place of Origin : CHINA

MOQ : 1 Nos

Price : Quotation Offered by Email.

Payment Terms : T/T

Supply Ability : 50Nos/Week for every single Customer.

Delivery Time : 10-15 Days

Valve Body Material : AISI 316L/316

Seal Material : PTFE/EPDM

Working Temperature : -20-180 degree centigrade (PTFE); -20-150 degree centigrade (EPDM)

Available Connection : Thread, Clamp, Weld, Flange

Certificate : CE

Optional Controller : 1500, 1600, 1880 Series

Contact Now

2800 Series SS316(CF8M) Pneumatic Diaphragm Control Valve with CE Certificate

1. Product Description

Powerflow diaphragm control valve is combined with 1500 series intelligent positioner and the diaphragm valve 2800 series. The product can be operated via the keypad easily. It detects the signal of internal displacement sensor and the external setting signal, and adjusts valve stroke fast and accurately by using automatic control algorithm and PWM control technology.

CE Certificate SS316 CF8M Pneumatic Diaphragm Valve

​

​2. 2800 Series Diaphragm Valve Technical Datas

Valve Body Material Stainless steel 316(CF8M)/316L(CF3M)
Seal Material EPDM/PTFE
Working Pressure 10Bar
Working Temperature

-20-180 degree centigrade (PTFE)

-20-150 degree centigrade (EPDM)
Availably size DN15-DN80
Availably connection Thread, Weld, Clamp, Flange
Air Supply

4-8bar(Single-Acting)

2.5-8bar(Double-Acting)
Standard DIN,SMS,ISO,IDF,RJT,3A,etc
Certificate CE

3. Dimension

CE Certificate SS316 CF8M Pneumatic Diaphragm Valve

Model d D D1 L A H

Actuator

Size
DN08 8 20.2 25.2 89 64 262 50
DN10 10 20.2 25.2 89 64 262 50
DN15 15 43.5 50.5 108 80 285 63
DN20 19 43.5 50.5 118 100 307 80
DN25 22.1 43.5 50.5 130 100 310 80
DN32 28.5 43.5 50.5 150 100 315 80
DN40 34.8 43.5 50.5 161 126 365 100
DN50 47.5 56.5 64 172 126 378 100

4. 1500 Series Positioner Schematic Diagram

CE Certificate SS316 CF8M Pneumatic Diaphragm Valve

5. 1500 Series Positioner Signal Flow Diagram

CE Certificate SS316 CF8M Pneumatic Diaphragm Valve

6. 2800 Sereis Type Selection

CE Certificate SS316 CF8M Pneumatic Diaphragm Valve

* Default actuator type is Single acting and normally close, Please remark if you need other type of actuators
